TORIS SQUARE Anti-Drone Radar Brand, Elijah
Elijah is the brand name of TORIS SQUARE's AI AESA radar, and is a key product of anti-drone solutions.
DETECTION / TRACKING
World’s best detection range & tracking performance
IDENTIFICATION
Superior object identification & analysis through AI
INTEGRATION
System integration based on outstanding interoperability
RELIABILITY
Proven product performance & reliability
" Detection Range is the core of radar technology. "
" Stable tracking and response to large cluster drones. "
- Real-time location information at the target radar level enables stable tracking (spotlight function)
- Verification of detection range and real-time tracking ability through field testing
- Detection – Identification – Tracking function for micro-drones (RCS 0.01m²)
- Real-time simultaneous detection and tracking of more than 100 large cluster drones
Elijah Radar succeeded in detecting, identifying, and tracking a drone with an RCS 0.03m² at a distance of 13km and a micro-drone with an RCS 0.01m² at a distance of 10km. In addition, drones flying in various routes, such as approach and departure targets, and crossing targets, were tracked and maintained without missing a single time.
[Situation 1]
DJI Matrice 600,
Approx. 13km Detection – Identification - Tracking
[Situation 2]
DJI Matrice 600,
Short-range and cross-flight
Detection – Identification – Tracking
[Situation 3]
DJI Phantom 4,
Micro-drone Approx. 10km Detection – Identification – Tracking
" AI judgment algorithm (*GANs) perfectly distinguishes drones and birds,
as well as vehicles, ships, and clouds.
"
- Deep learning technology has been applied for more than 7 years to distinguish between birds and drones as well as ships, vehicles, and clouds with automatic filtering (object analysis) through AI
- Maximize user convenience by classifying detected targets by risk level and providing movement points through path analysis
*GANs(Generative Adversarial Networks) :
A deep learning model in which the generator and discriminator improve accuracy through mutual learning of the target.
"Creating a single system
provides seamless system integration with other systems. "
- Provide integrated systems optimized for customer needs through a diverse product lineup
- Multiple system integration experiences and accumulated know-how enable complete operation (Hyundai Wia ADS, KEPCO KDN Integrated Infiltration Detection System, etc.)
Deployment of the Republic of Korea Army, Navy, and Air Force
2021 Defense Acquisition Program Administration Rapid Pilot Acquisition Project
A total of 4 sets of Elijah Radars are in operation
Hyundai Wia ADS Integrated Control Operation Console
Comprehensive Control System for Drone Detection, Identification, Tracking, and Neutralization
Installation of Elijah 2 Radar and Integrated Control Operation Console
Interworking with RCWS of
Hyundai Wia ADS
Remote Control Weapon System (RCWS)

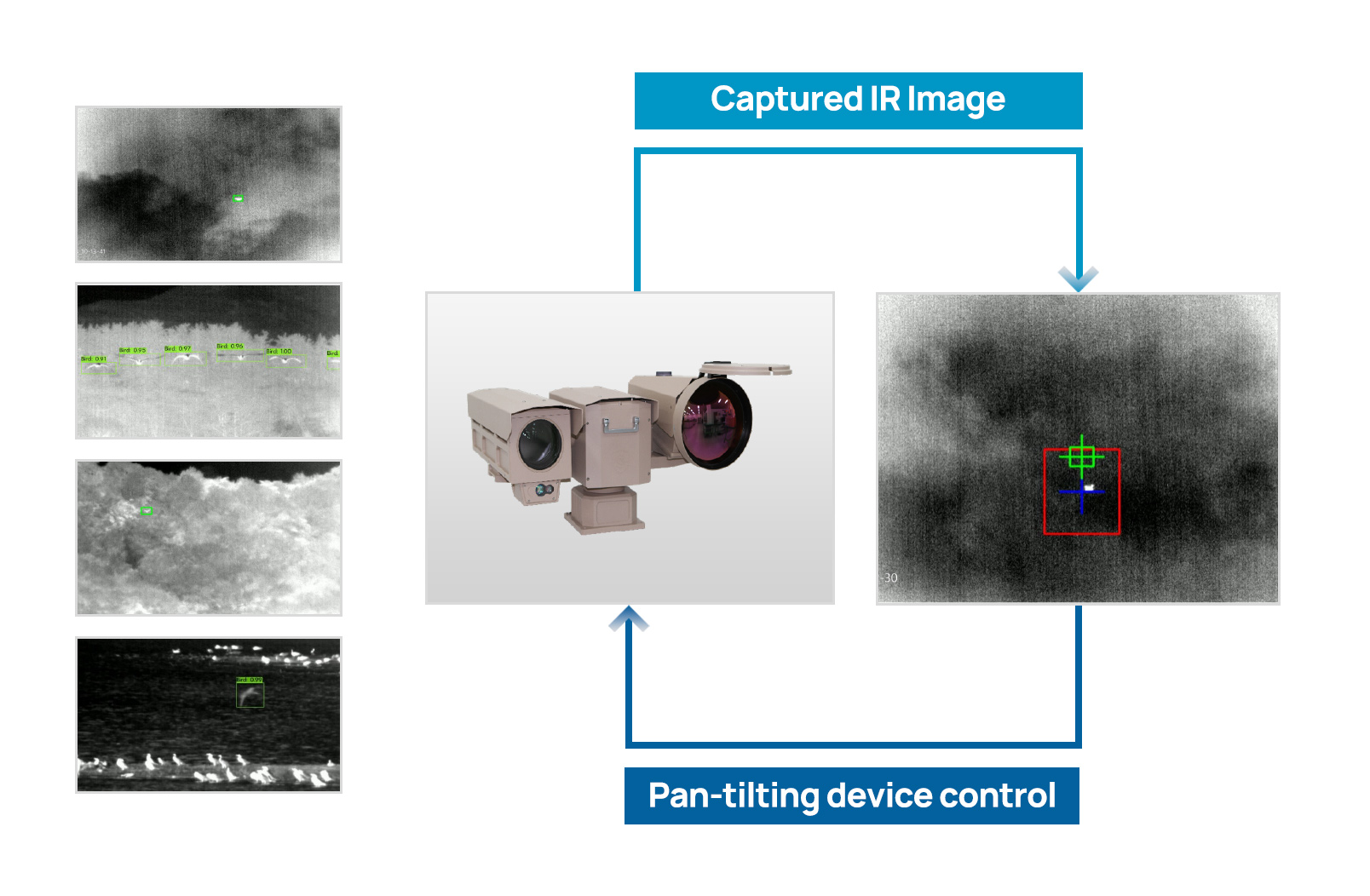

Elijah 2 Radar and EO/IR Camera Interworking
" Performance was verified through Defense Acquisition Program
Administration test evaluation, actual deployment, and various field tests. "
- Field test for the Republic of Korea Armed Forces and deployment for the Army, Navy, and Air Force completed

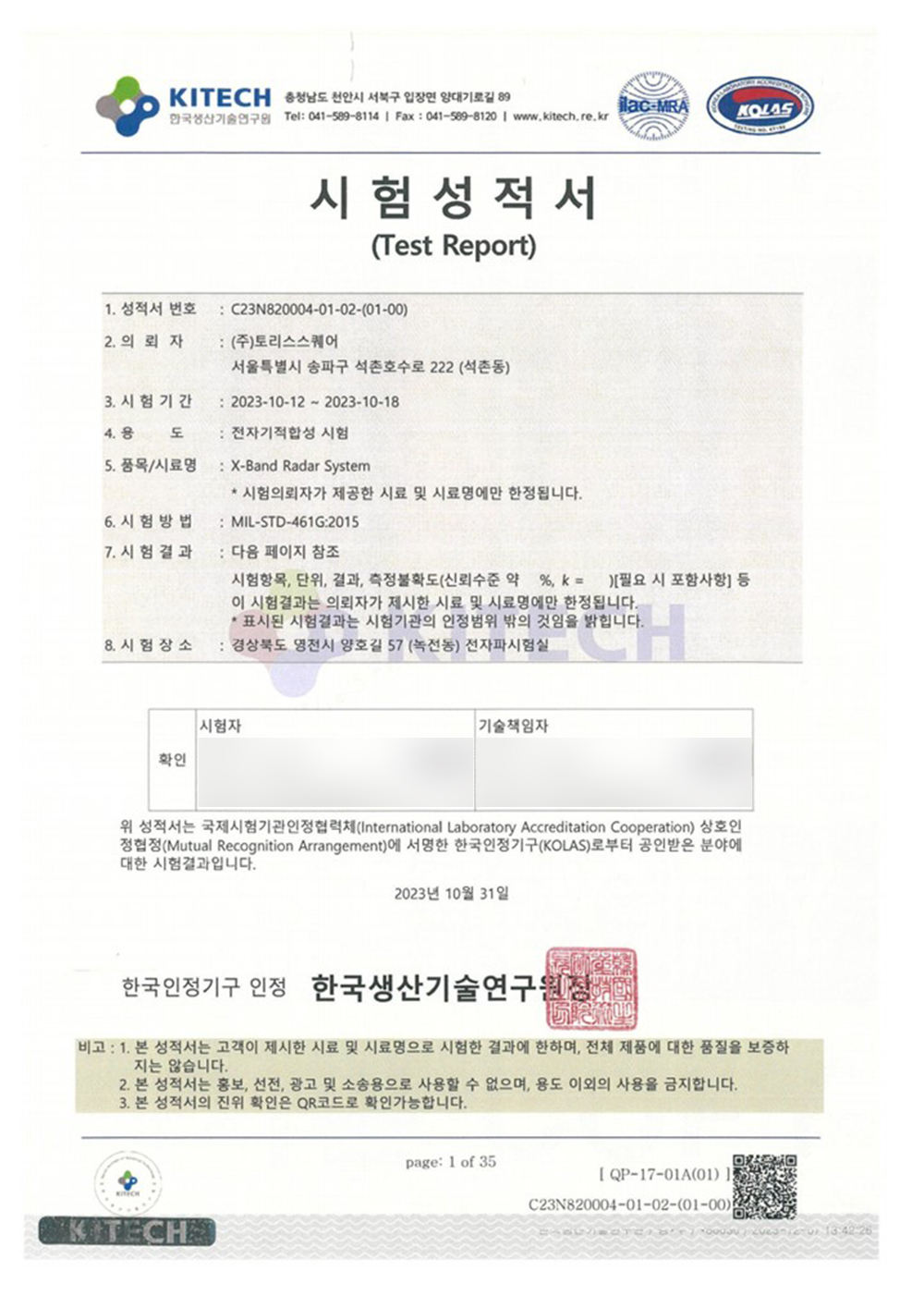

- 810G and 461G have been acquired by the world’s strictest U.S. military standard (MIL-STD)
- Permit to export dual-use strategic materials (for both military and industrial use)
2020.11.
Selected for Korea Defense Acquisition Program Administration’s Rapid Trial Acquisition Project
Contracted with
5km Detectable Radar
2021.07.
Delivered to the Republic of Korea Armed Forces
(Anti-Drone Radar System, 4 Sets, Elijah Radar 1)
Delivered with 8km
Detectable Radar
2021.07. - 08.
Army test and evaluation team conducts field tests
Delivered with 8km
Detectable Radar
2021.07. - 12.
Completed field deployment for the Republic of Korea Army, Navy, and Air Force
Currently in operation as 8km Detectable Radar
